Extractcoa Product Page: LIQUID CO2 GAS SUPPLY SYSTEM

Regardless Of The Scale Of The Solution We Provide, You Can Expect:

Quality manufacturing
Performance testing
The use of advanced technologies
Training and Support

It’s in our nature to be curious. We truly enjoy investigating, learning, developing, testing and creating solutions for any application involving gas. Our cross-disciplinary team of experts bring an in-depth knowledge of gases to every project. You can count on their passion and commitment to make your project a success. Every Weldcoa System is:

100% Hydrostatically pressure tested to 1.5 times the MAWP
100% Nitrogen leak tested
Inspected and thoroughly tested to be the highest safety standards before shipment
Inspected again and validated once system is installed and operating
Made in the USA

Click Here to Download Our New Product Catalog

Our Extractcoa™ Bulk CO2 Gas Supply System is best suited for Extraction Equipment of 40 Liters or Larger. The system can feed into your current extraction equipment, drastically improving the volume and condition of the CO2 supply as well as the efficiency in your operation.

The Benefits You Will See:

Increase the Flow Rate
Increase in the Extraction Cycles
Reduce the Charging Time
Reduce Cylinder Handling and Labor

We meet our customers requirements by determining the best system design using a variety of equipment:

1. The Bulk Storage Tank or MicroBulk Unit

Weldcoa does not manufacturer bulk tanks or microbulks however we do have a long history of working with tanks and have close relationships with bulk tank suppliers in the gas industry. We would be happy to connect you with a supplier /contact if needed.

The components that are needed for this unit, in order to be compatible with our modular skid, are liquid withdrawal and gas/liquid return ports. The tank size will be determined by the extractor size and the number of cycles to be run per day. We can help you will those calculations as well if needed.

2. The CO2 Modular Pump/CONTROLS Skid Unit *

The CO2 Modular Skid Unit consists of a modified CO2 pump, automation controls, piping and valve assemblies, all on a steel skid base. This modular unit is provided, tested, and remotely supported by Weldcoa. Every skid unit is specifically designed to be remotely supported for optimum performance, reliability and safety.

3. The Liquid Buffer Vessel Stations *

The Liquid Buffer Vessel Stations are modular in design and consists of a four DOT Spec Cylinders with custom heated blankets, automation controls, a touchscreen operator control station , a stainless steel header manifold, piping and valve assemblies, all on a steel skid base. This modular unit is provided, tested, and remotely supported by Weldcoa.

4. The Extraction machine

Typically, an Extractor consists of a Solvent Chamber(s) ranging from 2 to 400 Liters, an Expansion Chamber(s), an oil collection vessel, a CO2 gas recovery system and automated controls with an operator touchscreen terminal. None of this is provided by Weldcoa.

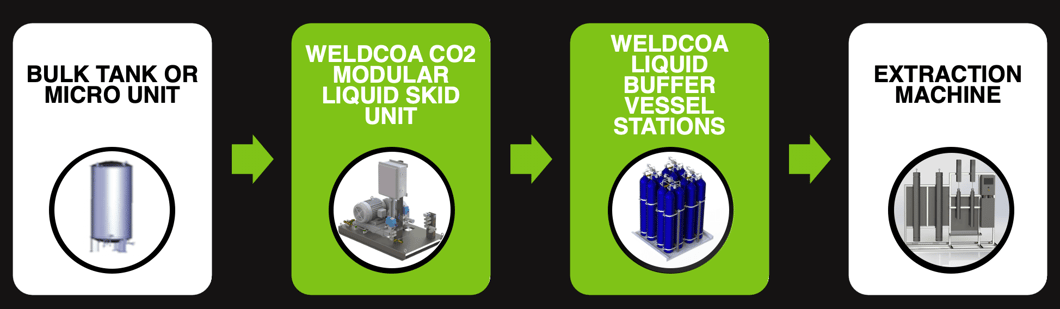

HOW A BULK Liquid CO2 SUPPLY SYSTEM WORKS

CO2 is stored in this unit in a Liquid Phase.

CO2 product, in a Liquid Phase, is piped from the bulk tank into the Pump (which is on the skid unit) and then piped to the Buffer Vessel Station(s) still in a Liquid Phase.

This process is managed and controlled by Weldcoa’s automation.

The number of Buffer Vessel Stations needed depends on your volume and quantity of your extraction equipment. This process is managed and controlled by Weldcoa’s automation.

As the client’s extraction volume increases, they can easily accommodate the demand by adding another Buffer Vessel Station to increase their storage capacity.

From the Buffer Vessel Stations, the CO2 product, still in a Liquid Phase, is piped into the Extractor inlet.

From the inlet, the CO2 product, in Liquid Phase is piped into the main Solvent Chambers of the Extraction Machine.

BULK CO2 SUPPLY SYSTEMS

FOR LIQUID PHASE APPLICATIONS
